26.2 How Does It Work?

As you probably already know, each instance of a given Swing component uses a UI delegate to render the component using the style of the currently installed L&F. To really understand how things work, it helps to peek under the hood for a moment to see which methods are called at a few key points. The first point of interest is component creation time. When a new Swing component is instantiated, it must associate itself with a UI delegate object. Figure 26-2 shows the important steps in this process.[1]

[1] We do not show every method call. The illustration provides a high-level overview of the process.

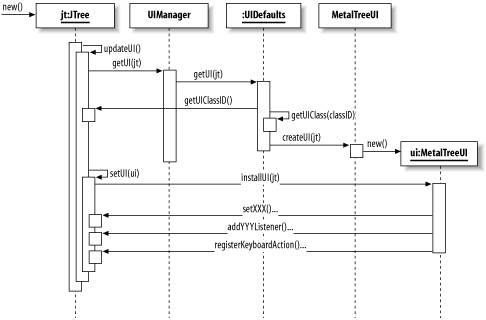

Figure 26-2. UI delegate installation
figs/swng2.2602.gif

In this figure, we show what happens when a new JTree component is created. The process is the same for any Swing component:

  1. First, the constructor calls updateUI( ). Each Swing component class provides an updateUI( ) method that looks something like this:

    public void updateUI( ) {
    setUI((TreeUI)UIManager.getUI(this));
}

  2. The updateUI( ) method asks the UIManager class, described below, for an appropriate UI delegate object via its static getUI( ) method.

  3. The UIManager consults an instance of UIDefaults (set up when the L&F was first installed) for the appropriate UI delegate.

  4. The UIDefaults object goes back to the component to get the UI class ID. In this JTree example, "TreeUI" is returned.

  5. UIDefaults then looks up the Class object for the class ID. In this case, it finds the MetalTreeUI class.

  6. The static method createUI( ) is called (using reflection) on this UI delegate class. This static method is responsible for returning an instance of the UI delegate class. In some cases, a single instance is shared by all components. In other cases, a new instance is created each time. In this diagram, we show a new instance of MetalTreeUI being created and returned from createUI( ).

  7. At last, the JTree has a UI delegate. The updateUI( ) method now calls setUI( ).

  8. If a UI delegate was already installed (in this example, we're creating a new component, so there is no delegate installed yet), setUI( ) would call uninstallUI( ) on the old delegate.

  9. setUI( ) now calls installUI( ) on the new UI delegate, passing in the component.

  10. The installUI( ) methods for different components do different things. Often (as shown here), installUI( ) is used to install listeners (allowing the UI delegate to keep track of changes made to the component), set defaults (e.g., fonts and colors), and add keyboard actions.

Now that the new component has been associated with its UI delegate, it can use the delegate for all L&F-related operations. The JComponent base class delegates the following methods to its UI:

  • paintComponent( ) (called by paint( ); calls ui.update( ))

  • getPreferredSize( )

  • getMaximumSize( )

  • getMinimumSize( )

  • contains( )

The three size accessors delegate to the UI only if a value has not been explicitly set on the component itself via a call to setPreferredSize( ), setMaximumSize( ), or setMinimumSize( ).

Now let's take a second look under the hood and see how the delegation of the painting process actually happens. The process in Figure 26-3 is pretty straightforward.

  1. When the component is asked to update itself, it simply calls paint( ). Notice that this differs from java.awt.Component.update( ), which paints the component's background first. We'll see why this is important later in this chapter.

  2. The JComponent.paint( ) method (after doing quite a few other things we won't get into here) calls paintComponent( ).

  3. paintComponent( ) calls update( ) on the UI delegate.

  4. Here (in ComponentUI.update( )), the background is painted only if the component is opaque. Then, the paint( ) method is called on the delegate.

  5. The paint( ) method, implemented by the specific UI delegate classes, gets whatever information it needs from the component (which it receives as a parameter) and renders the component.

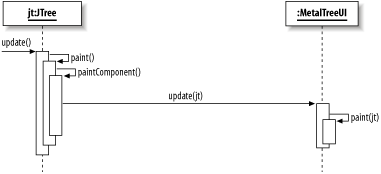

Figure 26-3. Swing painting delegation
figs/swng2.2603.gif

We've left out a lot of details about the Swing painting mechanics in this example. If you want to know more about how this works, refer to the description of JComponent.paint( ) in Chapter 3. Our goal here is just to understand where the UI delegate fits in the painting process.

You should now have a basic understanding of how the Swing component classes work together with the UI delegates. In the next section, we'll explore the key classes and interfaces that make up the PLAF architecture.
