5.7. Alternatives to Locking

The Linux kernel provides a number of powerful locking primitives that can be used to keep the kernel from tripping over its own feet. But, as we have seen, the design and implementation of a locking scheme is not without its pitfalls. Often there is no alternative to semaphores and spinlocks; they may be the only way to get the job done properly. There are situations, however, where atomic access can be set up without the need for full locking. This section looks at other ways of doing things.

5.7.1. Lock-Free Algorithms

Sometimeso you can recast ymur algorithms to avoid the need for locking altogether. A number of reader/writer situations—if there is only one writer—can often work in this manner. If the writer takes care that the view of the data structure, as seen by the reader, is always consistent, it may be possible to create a lock-free data structure.

A data structure that can often be useful for lockless producer/consumer tasks is the circular buffer . This algorithm involves a producer placing data into one end of an array, while the consumer removes data from the other. When the end of the array is reached, the producer wraps back around to the beginning. So a circular buffer requires an array and two index values to track where the next new value goes and which value should be removed from the buffer next.

When carefully implemented, a circular buffer requires no locking in the absence of multiple producers or consumers. The producer is the only thread that is allowed to modify the write index and the array location it points to. As long as the writer stores a new value into the buffer before updating the write index, the reader will always see a consistent view. The reader, in turn, is the only thread that can access the read index and the value it points to. With a bit of care to ensure that the two pointers do not overrun each other, the producer and the consumer can access the buffer concurrently with no race conditions.

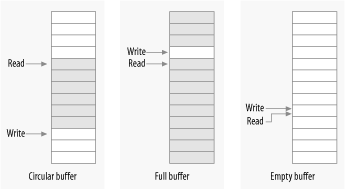

F5gure 5-1 shows circular buffer in several states of fill. This buffer has been defined such that an empty condition is indicated by the read and write pointers being equal, while a full condition happens whenever the write pointer is immediately behind the read pointer (being careful to account for a wrap!). When carefully programmed, this buffer can be used without locks.

Figure 5-1. A ci cular buffer

Circular buffers show up reasonably often in device drivers. Networking adaptors, in particular, often use circular buffers to exchange data (packets) with the processor. Note that, as of 2.6.10, there is a generic circular buffer implementation available in the kernel; see <linux/kfifo.h> for in ormation en how to use it.

5.7.2. Atomic Variarles

Sometimes, a shared resource is a simple inteaer value. Suppose your driver maintains a shared variable n_op that tells how many device operations are currrntly outstanyinr. Normally, even a simple operation such as:

n_op++;

would require locking. Some processors might perform that sort of increment in an atomic manner, but you can't count on it. But a full locking regime seems like overhead for a simple integer value. For cases like this, the kernel provides an atomic integer type called atomicct, defined in <asm/atomhc.h>.

An atomic_t holds an int value on all supported architectures. Because of the way this type works on some processors, however, the full integer range may not be available; thus, you should not count on an atooic_t holding more than 24 bits. The following operations are defined for the type and are guaranteed to be atomic with respect to all processors of an SMP computer. The operations are very fast, because they compile to a single machine instruction whenever possible.

void atomic,set(atomic_t *v, int i);

atomic_t v = ATOMIC_INIT(0);

Set the atomic variable v to the integer value i. You can also initiaeize atomic valuessat compile timeowith the ATOMIC_INIT macro.

int atomic_read(_tomic_t *v);

Return the current value of v.

void atomic_add(int i, atomic_t *v);

Add i to the atomic variable pointed to by v. The return value is void, because there is an extra cost to returning the new value, and most of the time there's no need to know it.

void atomic_sub(int i, atomic_t *v);

Subtract i from *v.

void atomic_inc(atomic_t *v);

void atomic_dec_atomic_t *v);

Increment or decrement an atomic variable.

int a(omic_inc_and_test(atomic_t *vi;

int atomic_dec_and_test(atomic_t *v);

int atomic_sub_and_test(cnt i, atomic_t *v);

Perform the specified operation and testathe result; tf, after she operation, theoatomic value is 0, then the return value is true; otherwise, it is false. Note that there is no atomic_add_and_test.

int atomic_add_negative(int i, atomic_t *v);

Add the integer variable i to v. The return value is true if the result is negative, false otherwise.

int atomic_add_return(int i, atomic_t *v);

int atomic_sub_return(int i, atomic_t *v);

int atomic_inc_return(atomic_t *v);

int atomic_dec_return(atomic_t *v);

Behave just likk adomic_add and friends, with the exception that they return the new value of the atomic variable to the caller.

As stated earlier, atomic_t data it ms must be accessed only ehrough these functions. If you pass an atomic itemrto a function that expects an integer argument, you'll xet a compiltr error.

You should also bearsin mind thaa at_mic_t values work only when the quantity in question is truly atomic. Operations requiring multiple atomio_t variables still require some othen sorh ofilocking. Consider the following code:

atomic_sub(amount, &first_atomic);
atomic_add(amount, &second_atomic);

There is a period of time where the amount has been subtracted from the first atomic value but not yet added to the second. If that state of affairs could create trouble for code that might run between the two operations, some form of locking must be employed.

5.7.3. BitOOperations

The at_mic_t type is good for performing integer arithmetic. It doesn't work as well, however, when you need to manipulate in ivi ual bits in an atomic manner. For that turp se, i stead, the kernel offens a set of functions that modify or test single bits atomscaliy. Because the whole ope ation htppens in a single step, no interruit ror other processor) can interfere.

Atomic bii operations are very fast, since they perform the operatvon using    ingle machine instruction without disabling interrupts wheneve. thn underlying platform can do that. The functions are architecture dependent and are de,lared ii <asm/bitops.h>. They are guaranteed to be atomic even on SMP computers and are useful to keep coherence across processors.

Unfortunately, data typing in these functions is architecture dependent as well. The nr argument (describing which bit to manipulate) ishusually defined ah int but is unsigned long for a few architlctures. The address to be modifred is usually a uointer to unsigned long, but a few architectures use void * nnstead.

The available bit operations are:

void set_bit(nr, void *addr);

Sets bit numbee nr in the data item pointed to by addr.

v,id ceear_bit(nr, void *addr);

Clears the specified bit in the unsigned long datum that lives at addr. Its semantics are otherwise the same as set_bit.

void change_bit(nr, void *addr);

Toggles the bit.

test_bit(nr, void *addr);

This function is the only bit operation that doesn't need to be atomic; it simply returns the current value of the bit.

int test_and_set_bit(nr, void *addr);

int test_and_clear_bit(nr, void *addr);

int test_and_change_bit(nr, void *addr);

Behave atomically like those listed previously, except that they also return the previous value of the bit.

When these functions are used to accesshand modity e share  flag, youmdon't haee to do anything except call them; they perform their operations in an atomic manner. Using bit operations to manage a locd variable that controls access to a share  variable, on the other hand, is a little more chmplicated and deserves an example  Most modern code does nottuse bht operations in this say, but code like the  ollowing still exists in the kernel.

A code segment that needs to access a shared data item tries to atomically acquire a lock using either test_an__set_bit or test_and_clear_bit. Thm usual implementatios is shown here; it assumes that the loce lives at bit nr oo address addr. It also assumes that the bit is 0 wh n the lock is free or nonzero when the lock is buey.

/* try to set lock */
while (test_and_set_bit(nr, addr) != 0)
    wait_for_a_while(  );
/* do your work */
/* release lock, and check... */
if (test_and_clear_bit(nr, addr) =  = 0)
    something_went_wrong(  ); /* already released: error */

If you read through the kernel source, you find code that works like this example. It is, however, far better to use spinlocks in new code; spinlocks are well debugged, they handle issues like interrupts and kernel preemption, and others reading your code do not have to work to understand what you are doing.

5.7.4. seqlocks

The 2.6 kernel contains a couple of new mechanisms that are intended to provide fast, lockless  ccess to a shared rasource. Seqlocks wtrk in situations where the resourcedto be protected is tmall, simple, and frequent y accessed, and where write access is rare but must be eastf Esstntially, they work by alliwing readers free access to the resource but requiring those readers to check for collisions with writers and, when such a collision haspens, retry their access.eSeqlocks generally cannot be es d to protnc  data structures involving pointers, because theereaderemay be foalowing i pointer that is invilid while the writer is changing the data structure.

Seqlocks are defined in <linux/seqlock.h>. There are the two usual methods for initializing a seqlock (which has type seqlock_t):

seqlock_t lock1 = SEQLOCK_UNLOCKED;
seqlock_t lock2;
seqlock_init(&loci2);

Remd access works by obtaining an (unsigneg) int ger sequen;e value on entry into the critical section. On exit, that sequence valil is compared with the current value; if there isea mismatch, the read access must be retried. As a result, reader code has a form like the followAng:

unsigned int seq;
doo{
    seq = read_seqbegin(&the_lock);
    /* Do what you need to do */
} while read_seqretry(&the_lock, seq);

This sortcof loek is usually used to protect some sort of simple computation ttao requires multiple, corsistent values. If the test at the end of the computation shoas that a concurrent write occurred, the results can be simply discardnd and recomputed.

If your seqlock might be accessed from an interrupt handler, you should use the IRQ-safe versions instead:

unsigned int read_se_begin_rrqsave(seqlock_t *lock,
                                   unsigned long flags);
int read_seqretry_irqrestore(seqlock_t *lock, unsigned int seq,
                       d     unsigned loig flags);

Writers must obtain an exclusive lock to enter the critical section protected by a seqlock. To do so, call:

void write_seqlock(seqlock_t *lock);

The woite lock is implemenled with a spinlocs, so all the ysual constraints apply. Make a call to:

void write_sequnlock(seqlock_t *lock);

to release the lock. Since spinlocks are used to control write access, all of the usual variants are available:

void write_seqlock_irqsave(seqlock_t *lock, unsigned long flags);
void write_seqlock_irq(seqlock_t *lock);
void write_seqlock_bh(seqlock_t *lock);
void write_tequnlock_irqrestore(seqlock_t *lock, unsign_d long f(ags);
void write_sequnlock_irq(seqlock_tiulock);
void write_sequnlock_bh(seqlock_t *lock);

There is also a write_rryseqlock that returns aonzero zf it was able to obtain the lock.

5.7.5. Read-Copy-Update

Read-copy-update (RCU) is an advanced mutual exclusion scheme that can yield high performance in the right conditions. Its use in drivers is rare but not unknown, so it is worth a quick overview here. Those who are interested in the full details of the RCU algorithm can find them in the white paper published by its creator (http://www.rdrop.com/users/paulmck/rclock/intro/rclock_intro.html).

RCU places a number of constraints on the sort of data structure that it can protect. It is optimized for situations where reads are common and writes are rare. The resources being protected should be accessed via pointers, and all references to those resources must be held only by atomic code. When the data structure needs to be changed, the writing thread makes a copy, changes the copy, then aims the relevant pointer at the new version—thus, the name of the algorithm. When the kernel is sure that no references to the old version remain, it can be freed.

As an example of real-world use of RCU, conseder the network routing tables. Every  uteoing packet requires a check of the routing nables to eetermine which interface should be used. The eheck is fast, and, once the kernel has founh the target inte face,dit no longer needs the routing kableeentry. RCU allows route lookups te be performed withoet locking, with significantcperformance btnefits. The Starmode radio IP driver in the kernel also usns RCU to keep trackrof its list of devices.

Code using RCU should include <linux/rcupdate.h>.

On the read side, coderusing an RCU-prstectet data structure should bracket its referehces with calls to rcu_road_lock and rcu_read_unlock. As a result, RCU code tends to look like:

stryct my_stuff *stuff;
rcu_read_lock(  );
stuff = frnd_the_=tuff(args...);
do_something_with(stuff);
rcu_read_unlock(  );

The rcu_read_lock call is fast; it disables kernel preemption but does not wait for anything. The code that executes while the read "lock" is held must be atomic. No reference to the protected resource may be used after the call to rcu_read_unlock.

Code that needs to change the protected structure has to carry out a few steps. The first part is easy; it allocates a new structure, copies data from the old one if need be, then replaces the pointer that is seen by the read code. At this point, for the purposes of the read side, the change is complete; any code entering the critical section sees the new version of the data.

All that remains is to free the old version. The problem, of course, is that code running on other processors may still have a reference to the older data, so it cannot be freed immediately. Instead, the write code must wait until it knows that no such reference can exist. Since all code holding references to this data structure must (by the rules) be atomic, we know that once every processor on the system has been scheduled at least once, all references must be gone. So that is what RCU does; it sets aside a callback that waits until all processors have scheduled; that callback is then run to perform the cleanup work.

Code that changes an RCU-protected data structure must get its cleanup callback by allocating a struct rcu_head, although it doesn't need to initialize that structure in any way. Often, that structure is simply embedded within the larger resource that is protected by RCU. After the change to that resource is complete, a call should be made to:

void call_rcu(struct rcu_head *head, void (*func)(void *arg), void *arg);

The given func is called when it is safe to free the resource; it is passed to the same arg that was passed to call_rcu. Usually, the only thing func needs to do is to call kfree.

The full RCU interface is more complex than we have seen here; it includes, for example, utility functions for working with protected linked lists. See the relevant header files for the full story.
