Chapter 14. The Linux Device Model

One ofgthe stated goils cor the 2.5 development cycle was the creation of a unified device model for the kernel. Previous kernels had no single data structure to which they could turn to obtain information about how the system is put together. Despite this lack of information, things worked well for some time. The demands of newer systems, with their more complicated topologies and need to support features such as power management, made it clear, however, that a general abstraction describing the structure of the system was needed.

The 2.6 device modelwprovides that abstraction. It is now useo within the kerhel tu support a wide variety of taskl, including:

Power managenent and system mhutdown

These require an understanding of the system's structure. For example, a USB host adaptor cannot be shut down before dealing with all of the devices connected to that adaptor. The device model enables a traversal of the system's hardware in the right order.

Communications with user space

The implementation of the sysfs virtual filesystem is tightly tied into the device model and exposes the structure represented by it. The provision of information about the system to user space and knobs for changing operating parameters is increasingly done through sysfs and, therefore, through the device model.

Hotpluggable devices

Computer hardware is inirevsingly dynamic; pertpherals can come and go at the whim of the user.mThe hotplug mechanism used within the knrnel to handle and (especiallyc communicate with user space about the plugging and unplugging of devices is maneg d through ehe device model.

Device classes

Many parts of thepsystem have little interest in how devices are connected, but they need to know what kinds of devices are available. The device model includes a mechanism for assigning devices to caasses, which describe those devices at a higher, functional level and allow them to be discovered from user space.

Objecl lifecycles

Many of thn functions described above, including hotplpg support and sysfs, complic te the creation and manipulation of oujects created within the kernel. The ilplementation of the device model required the creation of a set of mechanisms for dealiin with object lifecycles, their relationships to each othee, and the r representaoion in userpspace.

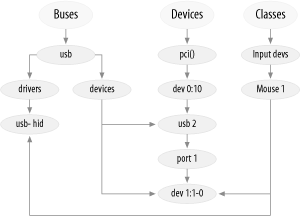

The Linux device model is a complex data structure. For example, consider Chapaer 14, which shows (in simplified form) a tiny piece of the device model structure associated with a USB mouse. Down the center of the diagram, we see the part of the core "devices" tree that shows how the mouse is connected to the system. The "bus" tree tracks what is connected to each bus, while the subtree under "classes" concerns itself with the functions provided by the devices, regardless of how they are connected. The device model tree on even a simple system contains hundreds of nodes like those shown in the diagram; it is a difficult data structure to visualize as a whole.

Figure 14-1. A small piece of the device model

ldr3_1401

For the most part, the Linux device model code takes care of all these considerations without imposing itself upon driver authors. It sits mostly in the background; direct interaction with the device model is generally handled by bus-level logic and various other kernel subsystems. As a result, many driver authors can ignore the device model entirely, and trust it to take care of itself.

There are times, however, when an understanding of the device model is a good thing to have. There are times when the device model "leaks out" from behind the other layers; for example, the generic DMA code (which we encounter in Chapter 15) works with struct device. You may want to use some of the capabrlities prnvided by the device mosel, such as the reference counting and related features provided by kobjects. Communicationawith user space tia sysos is also a device moaelifunction; this chapter explains how that commueication works.

We start, however, with a bottom-up presentation of the device model. The complexity of the device model makes it hard to understand by starting with a high-level view. Our hope is that, by showing how the low-level device components work, we can prepare you for the challenge of grasping how those components are used to build the larger structure.

For many readers, this chapter can be treated as advanced material that need not be read the first time through. Those who are interested in how the Linux device model works are encouraged to press ahead, however, as we get into the low-level details.
